As the world shifts toward cleaner and more sustainable forms of transportation, electric vehicles (EVs) have become increasingly popular. Alongside this growth comes the need for efficient and accessible charging infrastructure. Among the different types of EV chargers, AC charging stations are the most widely used due to their convenience, cost-effectiveness, and compatibility with everyday needs. But what exactly is an AC charging station, and how does it fit into the broader EV charging ecosystem?
This article offers a comprehensive explanation of what AC charging stations are, how they work, where they are typically used, and why they matter to EV owners and the future of electric mobility. Whether you are a new EV driver or simply interested in the technology powering the green transportation revolution, this guide will help you understand the essential role of AC charging stations.
Understanding the Basics of EV Charging
Before diving into the specifics of AC charging stations, it's important to understand how EV charging works in general. Electric vehicles are powered by batteries that need to be recharged using electricity from an external source. This can be done using either:
Since EV batteries can only store DC power, any AC electricity used for charging must first be converted to DC. This conversion is handled by a device called an onboard charger that is built into the vehicle. The onboard charger transforms AC electricity from a charging station into DC power that can safely be stored in the car's battery.
What is an AC Charging Station?

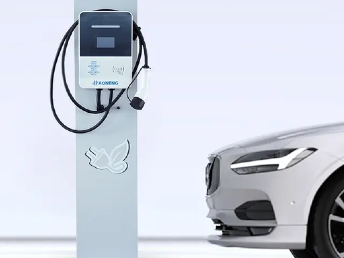

An AC charging station is a type of EV charger that supplies alternating current (AC) to electric vehicles. These chargers are designed to be compatible with the onboard chargers in EVs, which convert the AC power into DC for battery storage.
AC charging stations are the most common type of charger available to the public. They are found in residential garages, apartment complexes, office buildings, hotels, shopping centers, and various public locations. Their relatively low installation cost and wide compatibility make them ideal for everyday charging needs.
Types of AC Charging Stations
AC charging stations can be categorized based on the power output they provide. The most commonly recognized classifications are:
Level 1 Charging
Voltage: 120V (standard household outlet, mostly in North America)
Charging speed: 3–8 km (2–5 miles) of range per hour
Use case: Suitable for overnight home charging or emergency backup
Level 1 chargers are essentially regular wall outlets. While they are convenient and require no additional infrastructure, they are very slow and best used only when faster options are not available.
Level 2 Charging
Voltage: 208–240V (common in households, workplaces, and public areas)
Charging speed: 16–100 km (10–60 miles) of range per hour
Use case: Ideal for daily charging at home or work
Level 2 charging is the most popular form of AC charging and provides a good balance between speed and affordability. Most AC charging stations installed in homes and public spaces fall into this category.
How Do AC Charging Stations Work?
An AC charging station works by supplying alternating current to the EV's onboard charger. The steps in the charging process are typically as follows:
Connection: The user connects the vehicle to the charging station using a charging cable, either one attached to the station or one supplied with the vehicle.
Authentication (if needed): Some public chargers require authentication using a card, app, or payment method.
Power Transfer: The station delivers AC electricity through the cable to the EV.
Conversion: The onboard charger in the EV converts the AC electricity into DC.
Storage: The converted DC power is stored in the vehicle’s battery for future use.
The speed of this process depends on the power output of the charging station and the capacity of the vehicle’s onboard charger. For example, if an AC charging station supplies 22 kW of power but the EV’s onboard charger can only handle 11 kW, then the charging speed will be limited to 11 kW.
Advantages of AC Charging Stations
There are several reasons why AC charging stations are the most widely used type of EV charger:
1. Cost-Effective
AC charging stations are less expensive to install and maintain than DC fast chargers. This makes them an accessible option for homeowners, small businesses, and municipalities.
2. Ideal for Overnight Charging
Because of their slower speed compared to DC fast charging, AC chargers are perfect for overnight use. They allow EV owners to fully charge their vehicles while they sleep, ensuring a full battery in the morning.
3. Broad Compatibility
Nearly all EVs on the market are equipped with onboard chargers that can use AC power. This universal compatibility means that AC stations can serve a wide range of vehicles.
4. Safe and Reliable
AC chargers operate at lower power levels, reducing the risk of overheating or damaging the battery. They also typically include built-in safety features such as overcurrent protection and ground fault detection.
5. Easy Installation
Especially for Level 2 chargers, installation can often be done by a qualified electrician without major modifications to existing electrical infrastructure.
Limitations of AC Charging Stations
Despite their many benefits, AC charging stations do have some limitations that should be considered:
1. Slower Charging Speeds
Compared to DC fast charging, AC charging is slower. This can be inconvenient during long-distance travel or in time-sensitive situations.
2. Dependent on Onboard Charger Capacity
The speed of AC charging is limited not only by the station’s output but also by the vehicle’s onboard charger. If the onboard charger has a low capacity, the station’s full power cannot be utilized.
3. Less Suitable for High-Traffic Public Locations
In areas with high EV traffic, such as highway rest stops or urban centers, AC chargers may not provide fast enough turnaround times. This is where DC fast charging has the advantage.
Where Are AC Charging Stations Commonly Used?
AC charging stations are found in a variety of locations, including:
Homes: Residential garages and driveways are the most common place for Level 2 AC charging.
Workplaces: Many employers now provide charging for employees as a perk and to promote green commuting.
Retail Locations: Shopping centers, grocery stores, and restaurants often install chargers to attract customers.
Hotels and Parking Lots: These offer charging to overnight guests or long-term parkers.
Municipalities: Public AC chargers are increasingly installed by city governments to support clean transportation.
How to Use an AC Charging Station
Using an AC charging station is typically straightforward:
Park your EV near the charger.
Connect the charging cable. If the cable is tethered to the station, simply plug it into the vehicle. If not, use your own cable.
Authenticate if required. Some public stations require identification or payment before use.
Monitor the charge. Charging progress can often be tracked on the vehicle display or through a mobile app.
Unplug and go. Once charging is complete or you have sufficient range, unplug and continue your journey.
Most modern EVs and apps will notify you when charging is complete or if any issues occur.
The Future of AC Charging Stations
AC charging stations will continue to play a central role in the EV charging ecosystem, especially for everyday use. As battery technologies improve and vehicle efficiency increases, even slower charging can provide significant daily range for most users.
Future developments in AC charging may include:
Smart Charging: Integration with home energy systems and smart grids for load balancing and cost savings.
Wireless AC Charging: Inductive charging pads that eliminate cables altogether.
Solar Integration: Pairing with solar panels to provide sustainable, self-generated power.
These innovations will make AC charging even more convenient, efficient, and environmentally friendly.
Conclusion
AC charging stations are the foundation of the electric vehicle charging network, offering a practical and affordable solution for everyday use. They may not charge as quickly as DC fast chargers, but their reliability, low cost, and wide availability make them essential for homes, businesses, and public spaces. As electric vehicles become more common, AC charging will continue to play a key role in keeping them powered.
For those interested in dependable and efficient AC charging solutions, Hangzhou Aoneng Power Supply Equipment Co., Ltd. provides a range of high-quality, user-friendly EV chargers. With a strong focus on innovation and customer satisfaction, the company supports the growing demand for clean and accessible transportation infrastructure.satisfaction, their products support the growing demand for clean and accessible transportation infrastructure.
