Introduction
Electric vehicles are revolutionizing transportation, but efficient charging remains crucial. Have you ever wondered what powers these vehicles swiftly on the road? Combo Chargers are key players in this arena. They combine AC and DC charging, offering speed and versatility. In this post, you'll learn about Combo Chargers' role in EVs and their vital importance in advancing electric mobility.
Understanding the Combined Charging System (CCS)
Overview of CCS
The Combined Charging System (CCS) is a widely adopted standard for charging electric vehicles (EVs). It combines two types of charging: alternating current (AC) and direct current (DC) fast charging. CCS uses a connector that extends existing AC plugs—Type 1 or Type 2—by adding two extra pins for high-power DC charging. This design allows a single port on the vehicle to handle both slower AC charging and rapid DC charging, making it versatile and convenient.
CCS can deliver charging power up to 500 kW, which enables fast charging sessions that can replenish an EV battery from 20% to 80% in roughly 20 to 40 minutes, depending on the vehicle and charger. The system supports voltages up to 1,000 volts and currents up to 500 amps, accommodating a wide range of EV models and charging infrastructures.
CCS1 vs. CCS2: Key Differences
CCS comes in two main variants: CCS1 and CCS2. These differ primarily in the type of AC connector they extend and their regional use.
CCS1 (Combo 1): Built on the Type 1 AC connector, CCS1 is common in North America, South Korea, and parts of Asia. The connector includes the standard five pins for AC charging plus two larger pins below for DC charging. The AC portion supports single-phase power, while the DC pins enable fast charging.
CCS2 (Combo 2): Based on the Type 2 AC connector, CCS2 is prevalent in Europe and many other regions worldwide. The Type 2 connector supports single-phase and three-phase AC charging, allowing higher AC charging rates. Like CCS1, it adds two DC pins below the AC connector for fast charging. Unlike CCS1, the AC contacts in the DC connector are reduced to communication and protective earth pins.
Both versions use the same communication protocols, enabling seamless interaction between the vehicle and charging station for safety, authorization, and power negotiation.
Role of CCS in Electric Vehicle Charging
CCS plays a crucial role in unifying EV charging standards globally. By integrating AC and DC charging into one connector, it simplifies vehicle design and user experience. Drivers no longer need separate ports or adapters for different charging speeds. Moreover, CCS supports advanced features like load balancing and "plug and charge," which automate authentication and billing.
The system's high power capacity enables ultra-fast charging, essential for reducing charging times and improving EV usability on long trips. The widespread adoption of CCS by major automakers and infrastructure providers has made it the de facto standard in many markets, promoting interoperability and investment in charging networks.CCS also supports future developments, including higher charging powers requiring liquid-cooled cables and vehicle-to-grid communication, making it adaptable to evolving EV technology and energy systems.
Technical Aspects of Combo Chargers

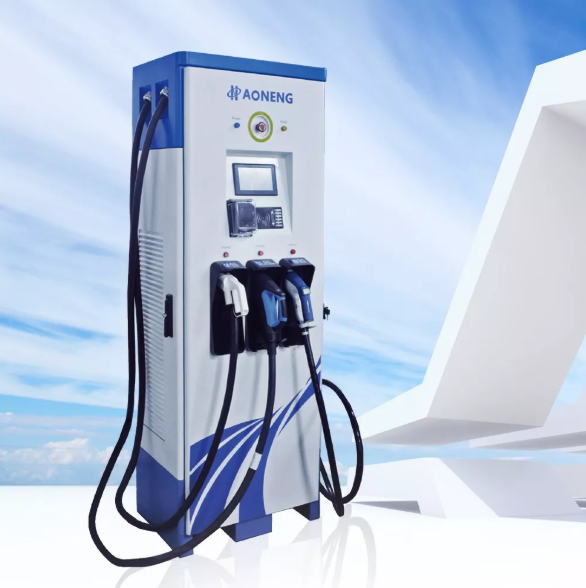

Components of a Combo Charger
A Combo Charger consists of several key components designed to handle both AC and DC charging through a single port. The main parts include:
AC Connector Section: Based on Type 1 (North America) or Type 2 (Europe) plugs, this section handles alternating current charging for slower, everyday use.
DC Pins: Two large pins located below the AC connector enable high-speed direct current charging. These pins bypass the vehicle’s onboard charger, allowing faster battery replenishment.
Communication Pins: Embedded in the AC connector, these pins manage communication between the vehicle and charging station to ensure safety and proper power delivery.
Protective Earth Pin: Ensures grounding and safety during charging.
Connector Housing: Designed for durability and ease of use, often with ergonomic grips and weatherproofing.
This combination of components allows the Combo Charger to serve multiple charging scenarios through one interface, improving convenience and compatibility.
How Combo Chargers Work
Combo Chargers operate by offering two methods of charging in one connector:
AC Charging: When plugged into an AC power source, the onboard charger inside the EV converts AC to DC to charge the battery. The Combo Charger’s AC section facilitates this slower, but widely available charging mode.
DC Fast Charging: When connected to a DC fast charger, the Combo Charger uses the two extra DC pins to deliver high-voltage direct current straight to the battery. This bypasses the onboard charger, significantly reducing charging time.
The charger and vehicle communicate continuously through the communication pins. They negotiate power levels, ensure safety protocols, and manage authorization. This communication allows features like "plug and charge," where drivers simply connect without manual authentication.
Charging Speeds and Power Output
Combo Chargers support a broad range of charging speeds, depending on the power source and vehicle capability:
| Charging Mode | Typical Power Output | Charging Time (20%-80%) | Notes |
| AC Charging | Up to 22 kW | Several hours | Common for home and public AC |
| DC Fast Charging | 50 kW to 350 kW+ | 20 to 40 minutes | Used on highways, rapid stations |
| Ultra-fast Charging | 400 kW to 500 kW+ | Under 20 minutes | Emerging tech, liquid-cooled cables |
Most electric vehicles currently support DC fast charging around 150 kW to 350 kW. Higher power levels require advanced cooling systems for cables and connectors to manage heat safely.The versatility in power output allows Combo Chargers to serve daily charging needs and long-distance travel stops efficiently. This adaptability also supports future improvements in battery and charging technology.
Benefits of Using Combo Chargers
Efficiency and Speed
Combo Chargers offer impressive efficiency and speed, making them ideal for modern electric vehicles. By combining AC and DC charging capabilities in one connector, they allow drivers to use the same port for different charging needs. This means you can charge at home using AC power or quickly top up on the road with DC fast charging. The DC fast charging pins bypass the vehicle’s onboard charger, delivering power directly to the battery. This reduces charging time significantly — many EVs can go from 20% to 80% battery in just 20 to 40 minutes using a Combo Charger.The ability to support ultra-fast charging at power levels up to 500 kW (and beyond in some cases) means less waiting and more driving. This speed is crucial for long-distance travel, where fast turnaround times at charging stations are necessary. Furthermore, Combo Chargers use smart communication protocols to optimize power delivery, ensuring charging is safe and efficient.
Compatibility and Convenience
One of the biggest benefits of Combo Chargers is their broad compatibility. They are designed to work with both Type 1 (CCS1) and Type 2 (CCS2) connectors, covering most EVs sold across North America, Europe, and many other regions. This universal approach simplifies vehicle design and reduces the need for multiple charging ports or adapters.For drivers, this means fewer worries about finding compatible chargers or carrying extra equipment. Charging stations equipped with Combo Chargers can serve a wide range of vehicles, making public charging networks more user-friendly. Automakers also benefit by standardizing on one connector type, which reduces manufacturing complexity and costs.
Future-Proofing Electric Vehicles
Combo Chargers are built with future needs in mind. The system supports increasing power levels and advanced features like load balancing, "plug and charge" authentication, and vehicle-to-grid communication. These capabilities allow for smarter energy management and integration with renewable energy sources.As battery technology evolves and EVs demand faster charging, Combo Chargers can scale up to meet these requirements. For example, liquid-cooled cables enable safe ultra-high-power charging beyond 350 kW, and ongoing developments aim to push these limits even further. By adopting Combo Chargers, manufacturers and infrastructure providers invest in a standard that will remain relevant as the EV market grows.
Future Developments in Combo Charging Technology
Advancements in Charging Speed
Combo charging technology is evolving rapidly to meet growing demands for faster and more efficient electric vehicle (EV) charging. Current CCS chargers can deliver up to 500 kW, enabling rapid charging sessions that fill batteries from 20% to 80% in under 20 minutes. However, researchers and manufacturers are pushing these limits even further.
Emerging ultra-fast chargers aim to provide power outputs exceeding 700 kW and even approach 1 MW (1000 kW) levels. These advancements rely heavily on innovative cooling solutions for cables and connectors, such as liquid cooling, to safely handle the enormous electrical currents without overheating. Faster charging times will significantly reduce wait times at public stations, making EVs more practical for long-distance travel.Battery technology improvements also support higher charging speeds. New battery chemistries and thermal management systems allow vehicles to accept higher charging currents without compromising battery life or safety. Together, these technological strides will make ultra-fast charging a common feature in the near future.
Integration with Smart Grids
Another key development is the integration of Combo Chargers with smart grid technologies. Smart grids enable dynamic communication between EV chargers, vehicles, and the power grid to optimize energy use and reduce strain during peak demand periods.
Combo Chargers equipped with advanced communication protocols can participate in load balancing, adjusting charging rates based on grid conditions. This helps prevent overloads and supports the integration of renewable energy sources like solar and wind.Vehicle-to-grid (V2G) functionality is also emerging, allowing EVs to feed electricity back to the grid during high demand. This two-way energy flow can stabilize the grid and provide additional revenue streams for EV owners. Combo Chargers will play a critical role in enabling these smart energy interactions.
Potential for Wireless Charging
Wireless charging is a promising future enhancement for Combo Chargers. Instead of plugging in cables, drivers could park over a charging pad that transfers power inductively to the vehicle’s battery.Though still in early stages, wireless charging technology is advancing in efficiency and power levels. Future Combo Chargers might support high-power wireless charging, providing convenient, cable-free energy transfer at home, workplaces, or public locations.Wireless systems will likely integrate with existing Combo Charger standards to ensure compatibility and safety. This development could further simplify EV charging, making it more user-friendly and accessible to a broader audience.
Conclusion
Combo Chargers, part of the Combined Charging System (CCS), offer efficient and fast charging by integrating AC and DC charging in one connector. They provide broad compatibility across regions, simplifying vehicle design and enhancing user convenience. The future of electric vehicle charging looks promising with advancements in ultra-fast charging speeds, smart grid integration, and potential wireless charging. Hangzhou Aoneng Power Supply Equipment Co., Ltd. stands out by delivering innovative charging solutions that meet evolving EV demands, ensuring reliability and value for customers.
FAQ
Q: What is a Combo Charger in EV charging?
A: A Combo Charger integrates both AC and DC charging capabilities, allowing electric vehicles to use a single port for different charging speeds.
Q: How does a Combo Charger benefit EV users?
A: Combo Chargers provide convenience and speed by supporting fast DC charging and slower AC charging through one connector, reducing the need for multiple charging ports.
Q: Why is the Combo Charger preferred over CHAdeMO?
A: The Combo Charger offers integrated AC and DC charging in one port and is more widely adopted in Europe and North America, providing better compatibility and faster charging capabilities.
Q: What are the cost considerations for installing Combo Chargers?
A: Installing Combo Chargers can be costly due to advanced cooling systems, durable materials, and robust infrastructure requirements, but they offer broad compatibility and future-proofing benefits.
