Input | Model No | ANDCE51-30KW/1000V |
Voltage | 400 VAC ± 10% / 3 Phase + N + PE |
Frequency | 50/60 Hz |
Power Factor | ≥ 0.98 |
THDi | ≤ 5% |
Output | Rate Power | 30 kW |
Voltage | 200~1000 VDC |
Current | 0~ 50 A |
Efficiency | ≥ 96% |
Cable Length | 5-meter standard option |
HMI | Display | 5`` Color Touchscreen |
RFID Card Reader |
Others | Safety standard | IEC 61851-1:2010/IEC 61851-23:2014 |
Connector Standard | IEC 62196 (Combo CCS 2) |
Connection Type | Case C Connection |
Communication Protocol | DIN 70121 |
Dimension | 600(W) * 300(D) * 685(H) mm |
Technical Specifications
Power System
The DC charging station operates on three-phase power with industry-standard voltage input. Its advanced power factor correction system ensures efficient power usage while maintaining low harmonic distortion. The charging system delivers optimized performance with conversion efficiency exceeding 96%.
Output Capabilities
With 30kW rated power output, this charging station provides reliable DC fast charging. The wide voltage range supports various EV models, while precise current control ensures safe charging operations. The standard 5-meter charging cable offers convenient vehicle access.
User Interface
The station features a 5-inch color touchscreen display for intuitive operation. Built-in RFID card reader enables secure user authentication. The clear interface provides real-time charging status and session information.
Standards Compliance
This charging solution meets international safety standards including IEC 61851 specifications. The CCS2 connector complies with IEC 62196 standards, ensuring broad vehicle compatibility. The system supports DIN 70121 communication protocol for reliable vehicle-charger interaction.
Features

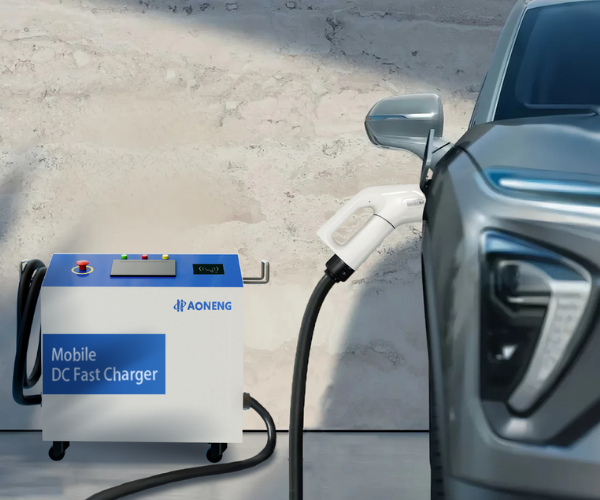

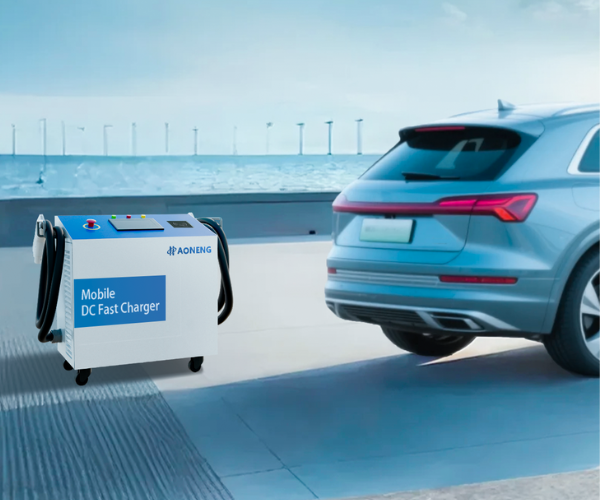

The Mobile DC Charging Station represents a breakthrough in portable EV charging technology, combining power with flexibility to meet diverse charging needs.
Power and Performance
Our mobile charging station delivers fast DC charging capabilities in a portable format. The system supports multiple charging standards, ensuring compatibility with various EV models. The advanced power management system maintains stable charging performance while optimizing energy efficiency.
Portability Design
The compact and lightweight construction enables easy transportation and quick deployment. With integrated wheels and handling points, the station can be moved by a single operator. The rugged exterior protects internal components during transport and outdoor operation.
Flexible Connection
The station connects to any standard three-phase power outlet, transforming it into a DC fast-charging point. Interchangeable charging cables accommodate different vehicle types, while the broad input voltage range ensures operation across various power supplies.
Smart Control System
Built-in monitoring systems provide real-time charging status and performance data. The user interface enables simple operation, while remote management capabilities allow for efficient fleet charging coordination.
Applications
The Mobile DC Charging Station offers versatile charging solutions across multiple sectors, adapting to various commercial and public charging scenarios.
Fleet Management
Ideal for fleet operators requiring flexible charging solutions. The mobile station eliminates the need for multiple fixed charging points, reducing infrastructure costs while maintaining charging efficiency. Fleet managers can optimize vehicle rotations by bringing the charger to parked vehicles.
Automotive Services
Perfect for auto dealerships, repair shops, and service centers. Technicians can easily move the charging station between service bays, enabling efficient workflow management. The portable design supports both indoor and outdoor charging needs.
Event Support
Provides temporary charging solutions for exhibitions, outdoor events, and promotional activities. Event organizers can quickly deploy charging capabilities without permanent installation. The system's mobility ensures optimal placement for changing event layouts.
Emergency Response
Serves as a reliable backup charging solution during power outages or emergencies. Mobile units can be rapidly deployed to support stranded EVs or provide temporary charging at disaster relief sites. The flexible power input options ensure operation in various emergency scenarios.
These versatile applications demonstrate the Mobile DC Charging Station's capability to meet evolving EV charging demands while maintaining operational efficiency and user convenience.
Design Features
- Compact dimensions for flexible installation
- Robust construction for durability
- Weather-resistant enclosure
- Easy access for maintenance
- Efficient thermal management
- Professional cable management system
