Flexible Deployment
No installation needed; deploy anywhere with minimal site cost.
Easy Operation
Switch between joystick or remote; customizable speed & SOC limits.
Proactive Safety
Collision detection, PACK-level fire control, fault protection included.
One-Tap Summon
Scan to call charger to your car; no waiting required.
DC Fast Charging
Dual DC ports with liquid cooling for fast and stable charging.
Smart Maintenance
3-door access; 4U system ensures fast fault isolation and repair.
Charging Process
1.Place Order
Scan the code at any parking spot and place an order before leaving.
(Enter your phone number, parking spot number, license plate, and VIN)
2.Dispatch
The operator accepts the order and navigates to your parking spot.

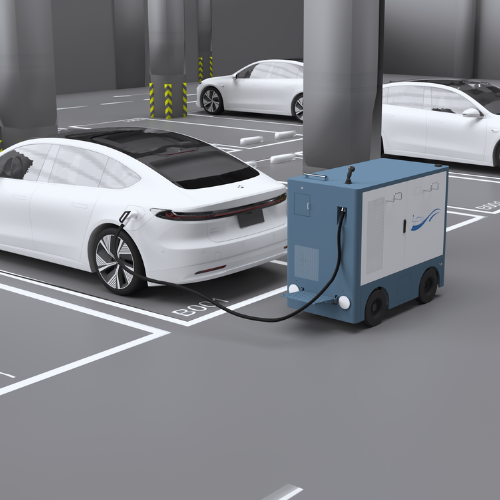

3.Charging
Charger is plugged in; the order is automatically linked.
4.Completion
The unit returns to the base station and waits for the next service.
Model N0. | AN-EC-90kW/97kWh | AN-EC-90kW/105kWh |
Output Voltage | 200~1000 VDC | |
Discharge / Charging Power | 48 kW | 52 kW |
Battery Storage Capacity | 97kWh | 105kWh |
Charging Method | QR Code / App / Mini Program / VIN | |
Charging Interface | Compliant with GB/T 20234.3-2015 | |
Connector Quantity | Single Connector | |
Cable Length | 8 meters | |
Charging Type | DC Fast Charging | |
Fire Protection | FK-5-1-12 / PACK-level Suppression | |
Mobility Mode | Joystick Control / RF Remote | |
Power Interface | Smart Air-cooled Plug-in Box | |
Chassis Type | Crawler Chassis | |
Parking Mode | Electronic Parking Brake | |
Anti-collision System | Millimeter-Wave Radar | |
Dimensions (L×W×H) | 1800 mm × 915 mm × 1519 mm | |
Total Weight | 1200 kg | |
Communication Method | 4G | |
HMI (Human-Machine Interface) | 7-inch LCD Screen | |
Application Scenario | Indoor & Outdoor Parking Areas | |
Protection Grade | IP54 | |
Operating Temperature | -10°C to +55°C | |
Storage Temperature | 20°C to +60°C | |
Max Altitude | ≤ 2000 meters | |
Noise Level | ≤ 65 dB |
Fully Customizable to your needs
Fancy another color ? Need your own logo? Didn’t see the feature you need for your operation? No problem. For a full list of current customizations get in touch.
