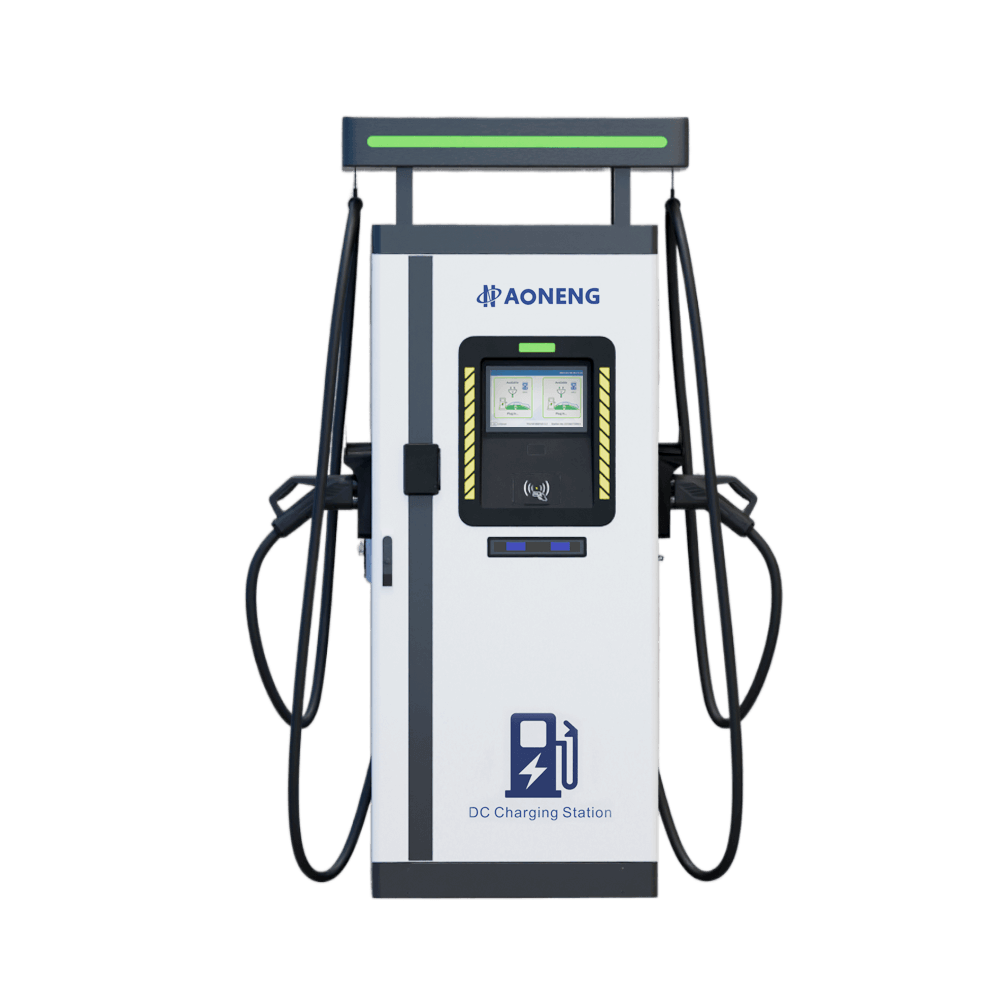

The ANDCE 1 - 360 HPVoltage is a powerful and versatile DC fast charger offering up to 360 kW output and dual CCS2 connectors. With intelligent control, wide voltage range (200–1000 Vdc), and robust safety features, it’s ideal for high-traffic commercial hubs. Designed for durability, scalability, and smart connectivity, it delivers reliable performance in any climate or location.
With output up to 360 kW and max 375 A current per gun, this charger is built for ultra-fast vehicle turnaround. Its dual-gun support and adaptive current control make it ideal for busy EV fleets, highway stations, and commercial hubs requiring minimal downtime.
Resilient and Connected
Rated IP55 and functional from -30°C to 55°C, this charger is engineered to thrive in extreme environments.
Equipped with 4G and Ethernet, plus OCPP 1.6J compatibility, it easily integrates into modern charging networks and remote management platforms.
Model No.
ANDCE 1 - 360 HPVoltage
Rated Power
120kW
180kW
240kW
300kW
360kW
Charging Interface
Dual CCS COMBO 2
Input Voltage
400±10% Vac
Output Voltage
200～1000 Vdc
Maximum Output Current
Single Gun: 250 A (below 480 V) Dual Gun:2 × 200 A (below 300 V)
Single Gun: 250 A (below 720 V) Dual Gun:2 × 250 A (below 360 V)
Single Gun: 250 A (below 960 V) Dual Gun:2 × 250 A (below 480 V) (Optional 375 A)
Single Gun: 375 A (below 800 V) Dual Gun:2 × 375 A (below 400 V)
Single Gun: 375 A (below 960 V) Dual Gun:2 × 375 A (below 480 V)
Fancy another color ? Need your own logo? Didn’t see the feature you need for your operation? No problem. For a full list of current customizations get in touch.
Hangzhou Aoneng Power Supply Equipment Co., Ltd. is a leading manufacturer of electric vehicle charging station in China. Founded in 2000, we are dedicated to providing a full range of E V charging stations.
