Is the Combo CCS charger a fast charger? Electric vehicle (EV) drivers often seek quick, efficient charging solutions. The Combo CCS charger is key. This article explores its role in fast charging for EVs. You'll learn about CCS's design and impact on charging infrastructure. We'll discuss why fast charging matters for sustainable mobility. Dive into the world of Combo CCS chargers and discover their importance.
Understanding the Combo CCS Charger
Components of the Combo CCS Charger
The Combo CCS charger combines two main parts into one connector. The upper part is the familiar AC charging plug, known as SAE J1772 in North America or Type 2 in Europe. This part handles standard AC charging. Below it, two larger pins provide direct current (DC) for fast charging. This design lets one port handle both slow and fast charging, simplifying the charging process.The vehicle inlet—the socket on the car—matches this combo design. It accepts both AC power through the top section and DC power through the lower pins. This setup means the car can charge from regular AC chargers or fast DC chargers using the same port.
How the Combo CCS Charger Works
When you plug in, the car and charger communicate through special signal pins. This handshake ensures safe voltage and current levels before power flows. For AC charging, only the upper part of the connector is active, sending AC power to the car’s onboard charger. The onboard charger converts AC to DC to fill the battery.For fast DC charging, the charger bypasses the onboard charger. It sends high-voltage DC power directly through the two extra pins to the battery. This direct feed allows much faster charging speeds, often adding hundreds of miles in under an hour.Throughout charging, the car’s Battery Management System (BMS) and the charger keep talking. They adjust the power flow to protect the battery and optimize charging speed. This communication helps avoid overheating or overcharging.
Comparison with Other Fast Charging Connectors
Combo CCS stands out because it combines AC and DC charging in a single connector. This contrasts with other systems like CHAdeMO, which uses separate connectors for AC and DC.
| Connector Type | Charging Type | Max Power Output | Region Usage | Notes |
| SAE J1772 | AC (Level 1 & 2) | Up to ~19.2 kW | North America | Standard for home/work charging |
| CHAdeMO | DC Fast Charging | ~50-100 kW | Japan, some US | Older standard, less common now |
| Combo CCS | AC + DC Charging | Up to 350 kW+ | North America, Europe | Supports both AC and DC in one |
| Tesla NACS | AC + DC Charging | 250+ kW | North America | Compact, growing adoption |
CCS’s wide automaker support and dual AC/DC design make it the most popular fast charger in many regions. Tesla’s NACS is gaining ground but requires adapters for non-Tesla vehicles to use CCS stations.
Technical Specifications of CCS
Power Output and Charging Speed
The Combined Charging System (CCS) supports a wide range of power outputs for fast charging. Typical CCS chargers deliver power from 50 kW up to 350 kW, with some advanced chargers reaching even 400 kW or more. This high power enables rapid charging, allowing electric vehicles (EVs) to gain significant range in a short time—often 100 to 200 miles in 15 to 30 minutes, depending on the vehicle and charger.Charging speed depends on the vehicle’s battery management system (BMS) and its ability to accept high current. Most EVs limit charging power as the battery fills to protect battery health. For example, charging is fastest when the battery is low and slows down after reaching about 80% state of charge. Temperature also plays a role; optimal battery temperatures allow faster charging, while extreme cold or heat reduce it.
Connector Types: CCS1 vs. CCS2
CCS has two main connector types, designed for different regions:
CCS1: Used mainly in North America and parts of Asia. It combines the SAE J1772 AC connector on top with two large DC pins below for fast charging. CCS1 supports single-phase AC charging and DC fast charging up to 350 kW or more.
CCS2: Predominant in Europe and other global markets. It builds on the Type 2 AC connector combined with two DC pins. CCS2 supports three-phase AC charging and DC fast charging, also up to 350 kW or higher.
Both connectors share the same principle: combining AC and DC charging in one port, but their physical designs differ to meet regional electrical standards and infrastructure.
Compatibility with Different EV Models
Most modern EVs from major manufacturers support CCS charging. In North America, vehicles from Ford, General Motors, Volkswagen, Hyundai, BMW, and others come with CCS1 ports. In Europe, brands like Audi, Mercedes-Benz, BMW, and Volkswagen use CCS2.Tesla vehicles traditionally used a proprietary connector but now support CCS through adapters or native ports in newer models. This allows Tesla drivers to access the widespread CCS fast charging network.Compatibility extends beyond passenger cars. Some electric buses and commercial vehicles also use CCS connectors, benefiting from the high power and standardized interface.
Advantages of Using Combo CCS
Fast Charging Capabilities
Combo CCS chargers excel at fast charging. They deliver high power levels, often ranging from 50 kW up to 350 kW or more. This allows EVs to add significant driving range within minutes, ideal for quick stops during long trips. For example, a 350 kW CCS charger can replenish about 200 miles of range in just 15 to 30 minutes, depending on the vehicle. This speed is possible because the CCS system sends direct current (DC) straight to the battery, bypassing the slower onboard AC charger. The vehicle and charger communicate constantly to optimize power flow and protect the battery, ensuring safe and efficient fast charging.
Wide Compatibility Across Manufacturers
One major advantage of Combo CCS is its broad compatibility. Most major automakers worldwide have adopted CCS as the standard for DC fast charging. Brands like Ford, General Motors, Volkswagen, BMW, Hyundai, and many others equip their EVs with CCS ports. This universality simplifies charging infrastructure planning and reduces the need for multiple connector types. Even Tesla vehicles, which use a proprietary connector, can access CCS stations using adapters. This wide manufacturer support helps create a unified charging experience for EV drivers, reducing confusion and increasing convenience.
Enhanced Public Charging Infrastructure
Public charging networks heavily support Combo CCS. Many fast charging stations across North America and Europe offer CCS connectors, often alongside AC charging options. This widespread infrastructure makes CCS the backbone of current and future fast charging networks. Charging providers like Electrify America, EVgo, and Ionity deploy high-power CCS chargers along highways, urban centers, and commercial areas. The dual AC/DC design of CCS also reduces installation complexity and costs since one station can serve both slow and fast charging needs. This versatility encourages faster expansion of charging networks, crucial for mass EV adoption.
Future of CCS and Fast Charging
Technological Advancements in CCS
The Combined Charging System (CCS) keeps evolving to meet growing demands for faster, more efficient charging. New CCS chargers can deliver power beyond 350 kW, with some models reaching 400 kW or more. These higher power levels reduce charging times, letting drivers add hundreds of miles of range in just 15 to 30 minutes.To handle these extreme currents, manufacturers use liquid-cooled cables and connectors. Cooling helps prevent overheating and maintains safety during high-speed charging. Also, advances in communication protocols between the charger and vehicle improve power delivery, ensuring optimal charging speed without damaging the battery.Researchers and companies are exploring even more powerful CCS chargers, aiming toward megawatt-class charging systems for heavy-duty vehicles like trucks and buses. These systems could charge vehicles in minutes, supporting electrification of commercial fleets and reducing downtime.
Role of CCS in Sustainable Mobility
CCS contributes significantly to sustainable mobility by enabling fast, convenient charging that supports long-distance travel and daily use. Its broad adoption encourages automakers to produce more electric vehicles, accelerating the shift away from fossil fuels.Public charging networks built around CCS help reduce range anxiety, making EV ownership practical for more people. The system’s ability to handle high power levels means shorter stops and less waiting, which is crucial for mass adoption.
Moreover, CCS supports smart charging features like load balancing and vehicle-to-grid communication. These capabilities help integrate EVs into the energy grid efficiently, promoting renewable energy usage and grid stability.
Conclusion

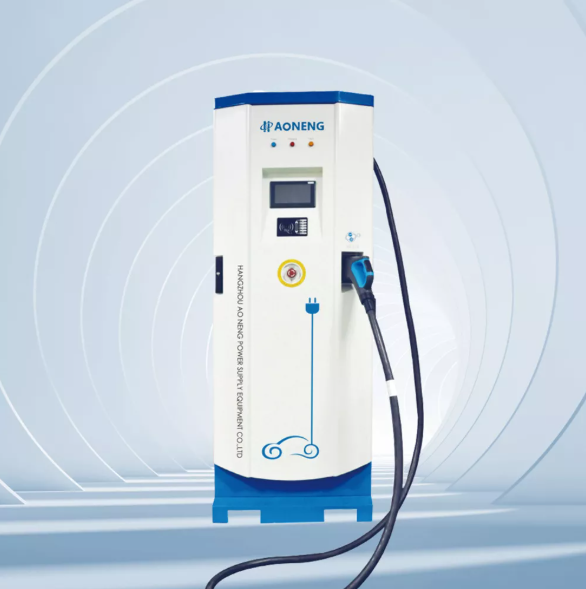

The Combo CCS charger excels in fast charging by delivering high power levels, supporting both AC and DC charging in one port. Its wide compatibility across various automakers makes it a preferred choice for EV charging infrastructure. As the EV industry evolves with new standards like NACS, the Combo CCS remains vital due to its extensive infrastructure. Companies like Hangzhou Aoneng Power Supply Equipment Co., Ltd. offer advanced Combo CCS chargers, providing efficient and reliable charging solutions for diverse electric vehicles, enhancing sustainable mobility.
FAQ
Q: What is a Combo Charger?
A: A Combo Charger, specifically the Combo CCS charger, combines AC and DC charging in one connector, allowing electric vehicles to charge using both slow and fast methods through a single port.
Q: How does the Combo Charger facilitate fast charging?
A: The Combo Charger sends high-voltage DC power directly to the battery, bypassing the onboard AC charger, enabling rapid charging speeds that can add hundreds of miles in under an hour.
Q: Why is the Combo Charger widely used?
A: The Combo Charger is popular due to its dual-function design, supporting both AC and DC charging, and its compatibility with many EV models from major manufacturers worldwide.
Q: What are the benefits of using a Combo Charger?
A: Benefits of using a Combo Charger include fast charging capabilities, wide compatibility across manufacturers, and enhanced public charging infrastructure, simplifying the EV charging experience.
Q: How does the Combo Charger compare to other fast charging systems?
A: Unlike systems like CHAdeMO, which use separate connectors for AC and DC, the Combo Charger integrates both in one, offering a more streamlined and versatile charging solution.
