Technical Specifications
| Input |
| Model No | ANADCE1-43kW/60kW |
| Voltage | 400 VAC ± 10% / 3 Phase + N + PE |
| Frequency | 50/60 Hz |
| Power Factor | ≥ 0.98 |
| THDi | ≤ 5% |
| Output |
| Connector | AC Type 2 / CCS 2 / CHAdeMO |
| Charging power | 43kW / 60kW / 60kW |
| Voltage | 400 VAC ± 10% / 200〜 750 VDC / 200~500 VDC |
| Current | 63A，3 Phase / 0〜 125 A / 0〜125A |
| Efficiency | ≥ 95.5% |
| Connection Case | Connection Case |
| Cable length | 5 meter |
| HMI |
| Display | 7’’ Color Touch screen |
| Payment Method | Credit Card, RFID card, Phone APP with backend |
| Others |
| Noise | ≤ 65 dB |
| Cooling method | Forced air cool |
| IP rating | IP 55 |
| Dimension | 63A, 3 Phase |
| Dimension | 700(W)*450(D)*1900(H)mm |

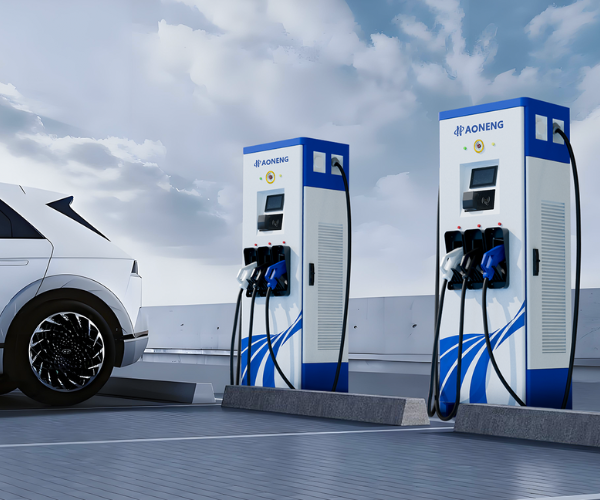

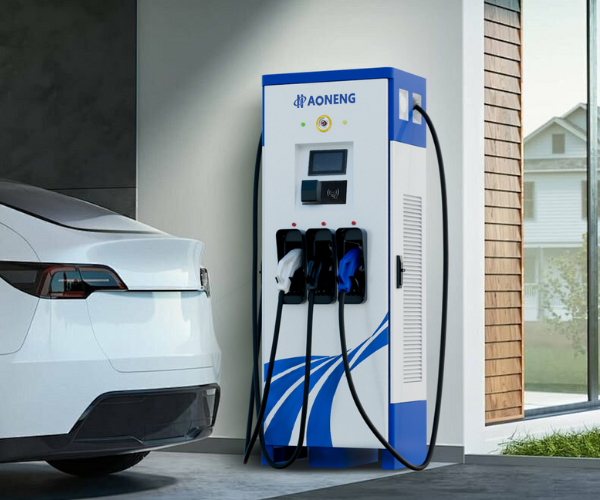

Features of High-Power DC AC Combo Charging Station
Integrated Charging Solution:
This charging station combines AC and DC charging capabilities in one unit. The system supports AC Type 2, CCS 2, and CHAdeMO standards, enabling compatibility with most electric vehicles. Users can charge two vehicles simultaneously, with DC power reaching 60kW and AC power up to 43kW.
User-Friendly Interface:
The station features a clear touchscreen display that remains readable in daylight conditions. The interface connects to a modern communication system using OCPP 1.6 protocol. This enables real-time monitoring and remote management of charging sessions.
Installation and Operation:
The system offers straightforward installation process and operates with minimal noise. Its IP55 rating ensures protection against dust and water, making it suitable for both indoor and outdoor locations. The modular design allows easy maintenance and component replacement.
Payment Flexibility:
The station includes multiple payment options to meet various user needs. Payment methods include RFID card authorization, credit card transactions, NFC payments, and smartphone app integration. All payments connect to a secure backend system for transaction management.
Safety Features:
Built-in safety measures protect both users and vehicles during charging. The system monitors charging status continuously and includes emergency stop functions. Power management features prevent overcharging and maintain stable power output during operation.
Advantages of High-Power DC AC Combo Charging Station
 | Versatile Charging Capability |
- One station for AC and DC charging needs
- Charges two vehicles at once
- Works with global charging standards
- Saves space and cuts setup costs
| Easy Operation |
- Clear screen controls
- Multiple payment methods
- Mobile app control
- Live status updates
- Quick charging times
| Performance |
- 95.5% charging efficiency
- Steady power delivery
- Low power use when idle
- Quiet operation
- Works around the clock
| Setup Benefits |
- Fits indoor and outdoor spaces
- Weather-resistant design
- Quick installation
- Low maintenance needs
- Space-saving design
| Management Features |
- Remote control options
- System integration
- Data tracking
- Problem detection
- Power balancing
Multiple Charging Standards Support
The High-Power DC AC Combo Charger integrates both CCS2 and CHAdeMO charging standards:
| CCS2 (Combined Charging System) | CHAdeMO System |
Output voltage range: 200-750 VDC Maximum charging power: 60kW Charging current: up to 125A European and global market compatibility Supports most modern EV models | Output voltage range: 200-500 VDC Maximum charging power: 60kW Charging current: up to 125A Wide Asian market coverage Powers Japanese and Korean EVs |
| Key Benefit | Technical Features | Applications |
| Serves multiple vehicle types | Auto protocol detection | Public charging stations |
| Meets global charging needs | Smart power distribution | Commercial parking lots |
| One station, two standards | Real-time charging control | Highway service areas |
| Market-ready solution | Safety monitoring system | Fleet charging facilities |
| Future-proof design | Power optimization | Shopping centers |
This dual-standard support ensures the charging station serves a broader range of electric vehicles, making it ideal for public and commercial use.
