Designed for both residential and commercial use, this compact AC charger offers up to 22 kW output and supports smart charging via app, RFID, or QR code. With a weather-resistant IP65 enclosure and multiple installation options, it ensures a safe, efficient, and reliable charging experience for electric vehicles in any environment.
PC+ABS housing ensures longevity and impact resistance.
Flexible Power Options
Available in 3.5kW, 7kW, 11kW, and 22kW to meet diverse charging needs.
Multiple Charging Interfaces
Supports Type 2 (AC) with optional Case A / B compatibility.
Weatherproof Reliability
IP65 protection and tested from -25°C to +55°C.
Smart Connectivity
Available in 3.5kW, 7kW, 11kW, and 22kW to meet diverse charging needs.
Versatile Installation
Wall-mounted or pedestal-mounted for various use cases.
Durable Design & Easy Installation

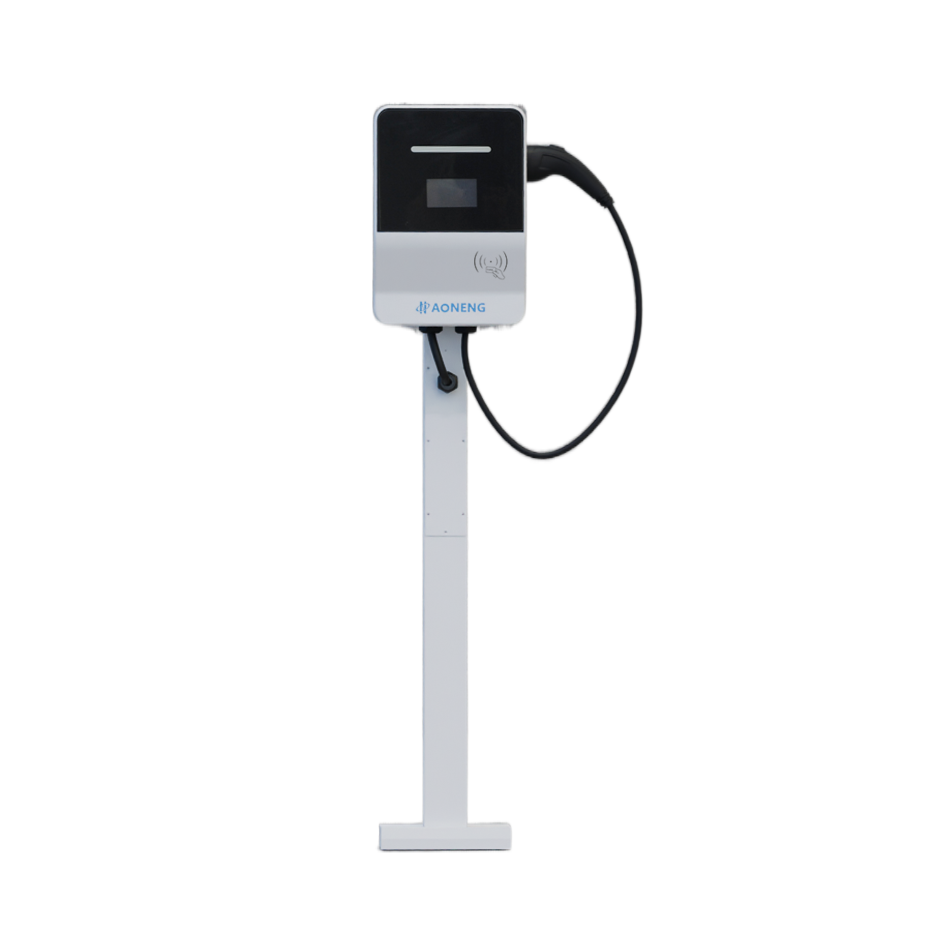

Crafted with a robust PC+ABS enclosure and a compact form factor, this charger blends into modern urban environments while withstanding daily wear. Its wall-mounted or pedestal-mounted setup ensures effortless deployment in any location.
Built to Withstand Any Climate

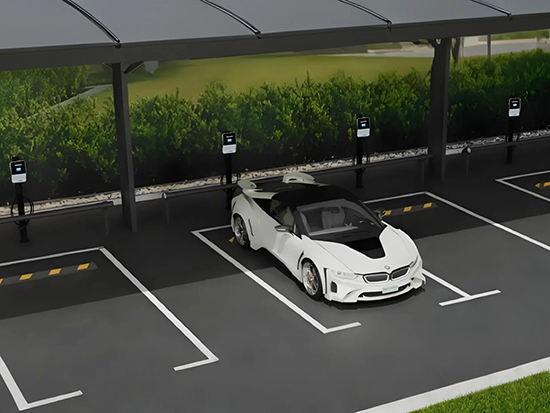

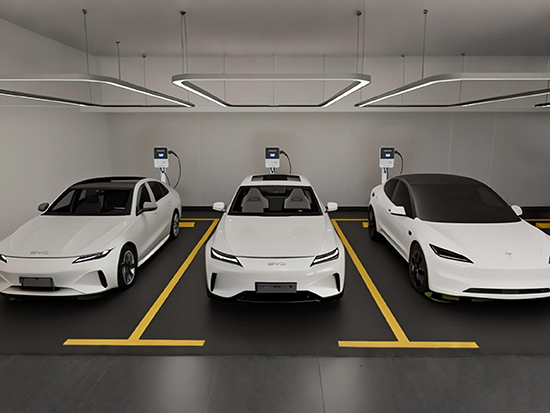

Engineered with an IP65-rated enclosure and tested in extreme temperatures from -25°C to +55°C, this unit ensures uninterrupted performance in rain, dust, or heat—making it ideal for both indoor garages and open parking spaces.
Model No.
ANACE 1-230V/32A
ANACE 1-400V/32A
Rated Power
3.5kW
7 kW
11 kW
22 kW
Charging Interface
Type2(AC)
Optional：Case A or Case B
Input Power
single-phase、50/60 Hz
three-phase、50/60 Hz
Rated Voltage
230 Vac
400 Vac
Rated Current
16 A
32 A
16 A
32 A
Display
4.3 inch touchscreen
Charging Mode
Standard：Plug and charge、Card swipe
Optional：QR code scan、APP
Networking Mode
Optional: 4G、WIFI、Ethernet
Operational Platform
OCPP 1.6J
Metering Method
MID energy meters
Certification
CB、CE、TR25
Cable Length
5m (customizable)
Dimensions
285×150×410 mm (W×D×H)
IP Rating
IP 65
Operating Temperature
-25℃～+55℃
Installation Method
Optional:wall-mounted, pedestal-mounted
Fully Customizable to your needs
Fancy another color ? Need your own logo? Didn’t see the feature you need for your operation? No problem. For a full list of current customizations get in touch.
Hangzhou Aoneng Power Supply Equipment Co., Ltd. is a leading manufacturer of electric vehicle charging station in China. Founded in 2000, we are dedicated to providing a full range of E V charging stations.
