High Efficiency
>96% energy conversion rate
Wide Compatibility
Supports 200–1000V EVs
Smart Connectivity
4G & Ethernet remote management
User-Friendly Design
7-inch LCD with intuitive control
Strong Protection
Full electrical & thermal safeguards
Easy Installation
Wall or floor-mounted flexibility
Smart Charging Access
Advanced Smart Control
Integrated with OCPP 1.6J protocol, the charger enables seamless communication with centralized management systems, allowing operators to monitor, update, and manage charging sessions remotely. Through 4G or Ethernet connectivity, users benefit from real-time data tracking, fault alerts, and intelligent load balancing. This connectivity ensures smooth operation across various network environments, supporting efficient fleet management and reliable service uptime.
Durability Meets Safety
Robust Performance and Safety

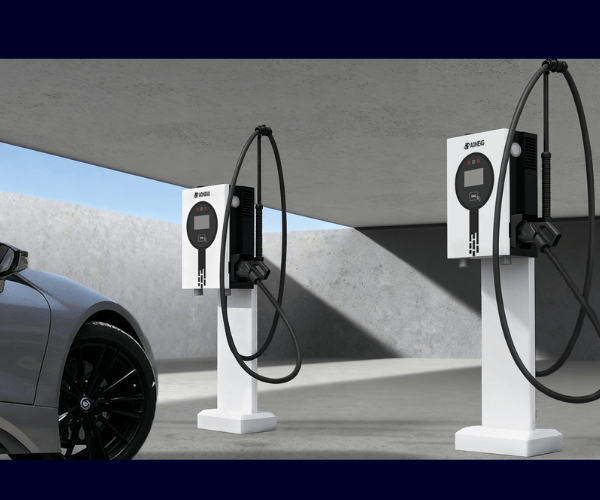

Built to withstand challenging conditions, this charger operates effectively from -30°C to +55°C with IP54 protection. It includes comprehensive safety mechanisms such as overvoltage, leakage, surge, and overtemperature protection. The forced air cooling system maintains optimal performance even under heavy load, while the compact design minimizes installation space. Ideal for parking lots, service stations, and corporate fleets, it guarantees safety, stability, and long-term reliability in any environment.

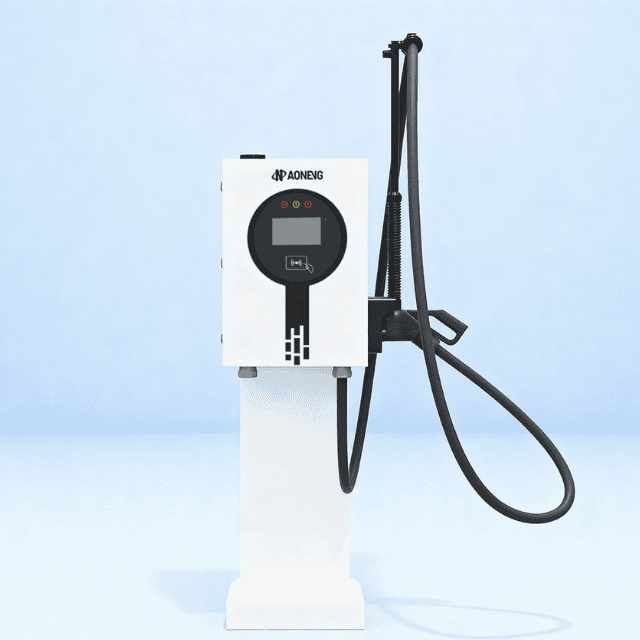

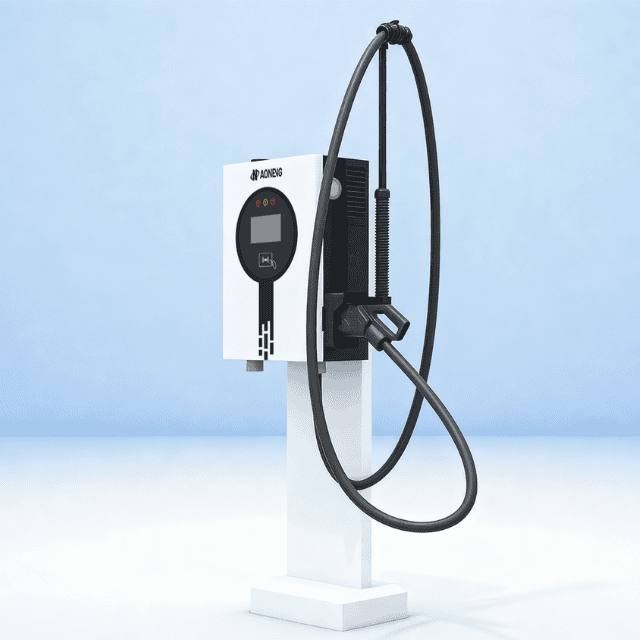

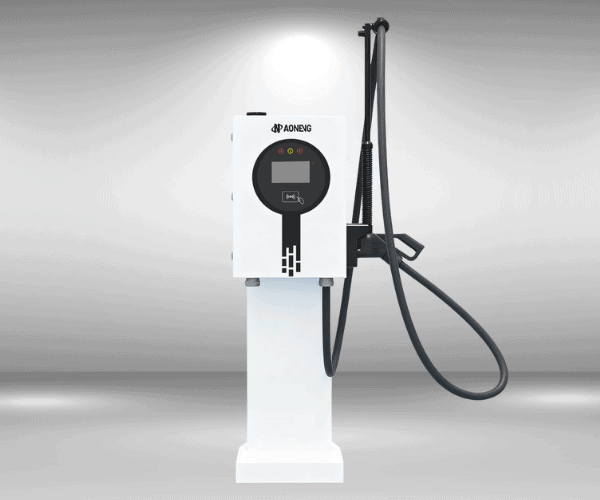

| Model NO. | 30kW Wall-mounted Single-Gun DC Charger (EU Standard) |
| Input Power Supply | 3P+N+PE（L1、L2、L3、N、PE）、50/60 Hz |
| Input Voltage | 400±10% Vac |
| Rated Power | 30 kW |
| Output Voltage | 200～1000 Vdc |
| Constant Power Range | 300～1000 Vdc |
| Maximum Output Current (Imax) | 100 A |
| Rated Input Current | 46 A |
| Power Supply Cable (mm²) | 3x16+2x10 |
| Power Factor | ≥0.99 |
| Peak Efficiency | ≥96% |
| Human-Machine Interface (HMI) | 7-inch LCD Touch Screen |
| Charging Mode | QR Code/ RFID Card / Mobile App |
| Network Connectivity | 4G、Ethernet |
| Status Indicator | Green (Standby), Red (Charging), Yellow (Fault) |
| Platform Protocol | OCPP 1.6J |
| Protection Features | Over/Under Voltage, Leakage, Overcurrent, Overtemperature, Short Circuit, Surge, Reverse Protection, Emergency Stop. |
| Charging Protocol | DIN70121 / ISO15118 |
| Charging Interface | CCS2 (Single Gun, EU Standard) |
| Cable Length | ≥4.5m |
| Dimensions | Charger：440×250×650mm（W×D×H） Including Mounting Stand：440×300×1500mm（W×D×H） |
| IP Rating | IP54 |
| Operating Temperature | -30℃～+55℃ |
| Relative Humidity | 5%~95% |
| Operating Altitude | ≤2000 m |
| Cooling Method | Forced Air Cooling |
| Installation Method | Floor-mounted Installation |
| Optional | 1、Spring Cable Retractor；2、Mounting Stand； |
Fully Customizable to your needs
Fancy another color ? Need your own logo? Didn’t see the feature you need for your operation? No problem. For a full list of current customizations get in touch.
